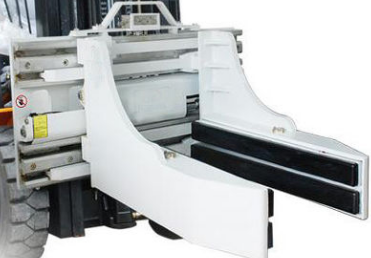

Connecting block clamp of sliding arm forklift
Functions & Applications
Forklift block clamp is mainly used to clamp all kinds of stones and bricks. It is suitable for scenes: floor tiles, precast concrete parts, stones, graphite, etc. It is a non pallet handling accessory.
Features
* The optimized structure layout can ensure good visibility.
* T-type glide pair is assumed to have high strength, uniform stress and long service life.
* The removable wear-resistant strip is chosen, which is convenient, economical and practical to replace after wear.
Options
* User defined range
* Weapons of various materials
* Various installation categories are available
* Load backrest
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
O (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
T (mm) | Overall
Height
A (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| Slip-on Arm Type |
| 2500@550 | CKS30D-101A | II | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 430 | 208 | 200 |
| 2500@550 | CKS30D-101B | III | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 450 | 216 | 210 |
| 1980@700 | CKS30D-102B | III | 270-1610 | 94 | 1400 | 1016 | 202 | 710 | 192 | 480 | 216 | 220 |
| 2600@510 | CKS30D-103A | II | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 425 | 208 | 200 |
| 2600@510 | CKS30D-103B | III | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 445 | 216 | 210 |
| 1950@650 | CKS30D-104B | III | 270-1610 | 94 | 1300 | 1016 | 202 | 710 | 192 | 500 | 266 | 220 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The arm height of 128mm is single glue type, and the arm height of 242mm is double glue type.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| CKS30D | 15 | 40 | 40 | 35 | 160
|
Options:
* Left and right arms are independent joints.
Applicable Industries
Construction industry, building materials store, landscaping, hotel, clothing store
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
Product Tags:
|
|
Limestone Concrete Block Lifting Clamps Grab 710mm Images
|
