Accessories for forklift rotary clamps 1245mm/1550mm/1855mm

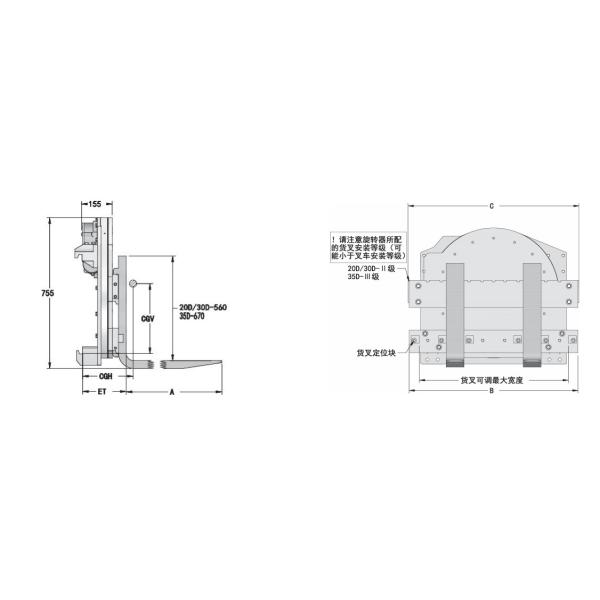

Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Carriage Width
B(mm) | Fork Max.
Spacing
OTO(mm) | Overall
Width
C(mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 6800@600 | RRB70D-001C | 1245 | 1245 | 1285 | 415 | 924 | 218 | 119 |
| 6800@600 | RRB70D-002C | 1550 | 1550 | 1590 | 410 | 981 | 218 | 127 |
| 6800@600 | RRB70D-003C | 1855 | 1855 | 1890 | 405 | 1040 | 218 | 130 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. A set of additional oil circuit is required on the forklift.
3. Add forks according to user needs. Please note the capacity of the fork.
4. During actual installation, please adjust the positioning block according to the width of the shift fork, select a mating surface to prevent load rotation, and the shift fork moves on the upper and lower beams.
Features
* The hydraulic motor is mounted with an reversible hydraulic lock and has the function of locking in each angle position.
* Sustainable T-ray arm structure made of aluminium.
* Excellent glacier storage for prolonging life
Options
* Different car widths
* Fork
Applicable Industries
Manufacturing plant, farm, household, construction engineering, building material store
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
